24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB

1
MOQ
CN¥1,449.88-1,589.74
prezzo
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tipo: Macchina a fibra ottica di produzione
Peso netto: 1,2 kg
materiale: Acciaio inossidabile temprato s136
Misurare: 174 mmx174 mmx26 mm
No. di fibra: 24
Perdita di inserzione: ≤0.20db
Perdita di ritorno: ≥55dB (PC) ≥60dB (APC)
Diametro della ferrule: 2,5 mm
Capacità: 24 posizioni
Fine-fronte: UPC
Tipo di connettore: SC UPC
Dimensione: 174*174*26 mm
Peso lordo: 1,5 chilogrammi
Raggio di curvatura: 5-25 mm
Offset dell'apice: 0-50μm
Evidenziare:

24 Port Polishing Fixture

,

Hardened Stainless Steel S136 Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB Fiber Polishing Holder
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: chuanglixun
Numero di modello: SC/UPC-24, SC/UPC
Termini di pagamento e spedizione
Descrizione di prodotto
SC UPC-24 Port Fiber Optic Connector Polishing Fixture/Jig
This high-stability fiber polishing fixture delivers exceptional surface quality for SC/UPC connectors. Manufactured from premium hardened steel S2316 with heat treatment for extended service life.
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 0
Key Features
  • Designed specifically for SC/UPC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency: polishes up to 24, 32, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Interference pass rate ≥98% (typically 100% per IEC standards)
  • UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life

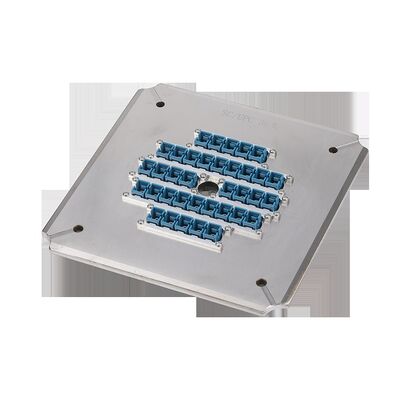

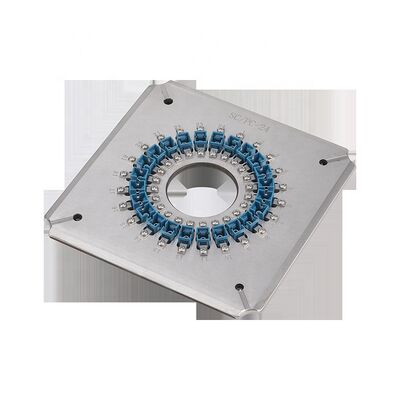

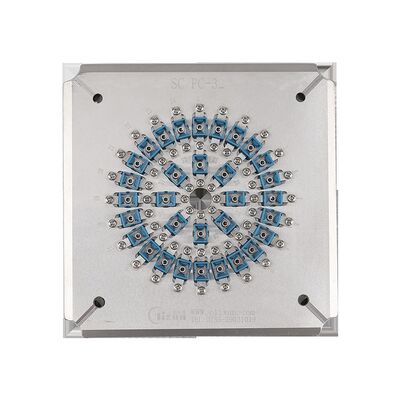

24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 1 24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 2 24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 3 24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 4
Technical Specifications
Model SC-UPC-24 SC-UPC-32 SC-UPC-36
Brand CLX CLX CLX
Connector Type SC UPC SC UPC SC UPC
End-face UPC UPC UPC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled SC UPC connectors Polishing assembled SC UPC connectors Polishing assembled SC UPC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kgs / 1.5 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a free Quotation via Us >>> GO
Polishing Performance Results
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 5
Insertion Loss & Return Loss Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 6
Geometry Test Results
No. Parameters UPC Criterion APC Criterion
1 Radius of Curvature 5-25mm 5-12mm
2 Apex Offset 0-50μm 0-50μm
3 Fiber Height -100~+50μm -100~+50μm
4 Angle n/a 8.00+/-0.50°
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 7
Manufacturer Profile
24 Port SC UPC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Insertion Loss ≤0.20dB 8
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd., established in 2010, is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, comprehensive after-sales service, and free technical support for fiber optic connector production challenges.
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days. Delivery time may extend based on order quantity.
How do we pay?
Payment in advance or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period with free repairs (excluding consumables). After warranty, accessories provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements.
Get a free Quotation via Us >>> GO
