Casa /Prodotti/Macchina di fabbricazione del cavo di toppa della fibra/CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision

1
MOQ
$170-175
prezzo
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Fonte di energia: CA 100-240 V
Consumo energetico: 800W
Peso: 8kg
Temperatura operativa: 20 - ℃ 300
Dimensioni: 400*280*120mm
Intervallo di tempo di riscaldamento: ore 1 minute-99.99
No. di fibra: 100
Precisione del controllo della temperatura: 1 ℃
Capacità di elaborazione una tantum: 100 puntali in ceramica o 50 connettori in fibra ottica
Tensione operativa: AC220V
Frequenza di lavoro: 50-60Hz
Temperatura di riscaldamento: 20℃ 〜 300℃
Controllare la precisione: 1℃
Modelli di connettori adatti: SC/FC/ST/LC/E2000/MU
Dimensione del puntale: 1,25 mm/2,5 mm
Evidenziare:

100 ceramic ferrules Optical Fiber Epoxy Curing Oven

,

20-300 ℃ temperature range Fiber Optic Curing Oven

,

1 ℃ temperature control precision Epoxy Curing Oven
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: Chuanglixun
Numero di modello: CLX-D02
Termini di pagamento e spedizione
Descrizione di prodotto
CLX-D02 Optical Fiber Epoxy Curing Oven

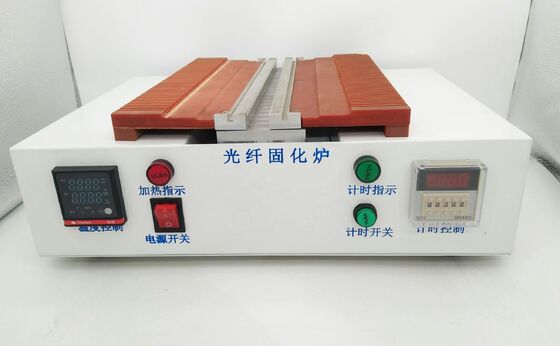

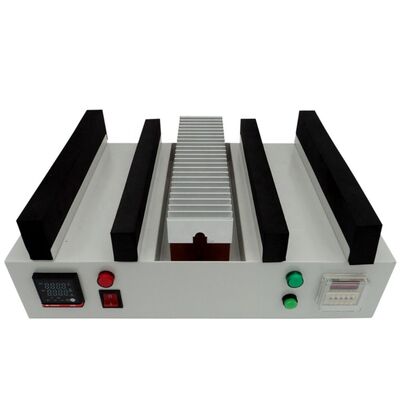

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 0 CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 1
The CLX-D02 Curing Oven is a universal curing oven designed for fiber optic connectors after glue injection. Compatible with standard connectors including FC, SC, ST, MU, and LC types, this unit features a heating board capable of accommodating up to 100 connector ferrules simultaneously. Equipped with indicator lights, timer, and temperature display, the CLX-D02 offers simple operation and delivers perfect curing results. Customization options include MPO heating boards, cable hold shelves, and 1.25mm & 2.5mm adaptors.
Key Features
  • Heats and cures optical fiber epoxy resin with capacity for 100 ceramic ferrules simultaneously
  • Advanced PID temperature controller with self-tuning function for precise temperature setting
  • Temperature control accuracy within 1℃ with adjustable heating time
  • Temperature range from 20℃ to 300℃ with precise 1℃ control accuracy
  • Audible buzzer alerts and time switch control for automated operation
  • Rapid epoxy curing in 10-15 minutes for optimal production efficiency
Technical Specifications
Net Weight 8 KG
Dimensions 425 x 325 x 150mm
Heating Temperature Range 20℃ to 300℃
Temperature Control Precision 1℃
Processing Capacity 100 ceramic ferrules or 50 fiber optic connectors
Compatible Connector Models SC/FC/ST/LC/E2000/MU (1.25mm/2.5mm ceramic ferrule)
Operating Voltage AC220V
Working Frequency 50-60Hz
Heating Time Range 1 minute to 99.99 hours
Power Consumption 800W

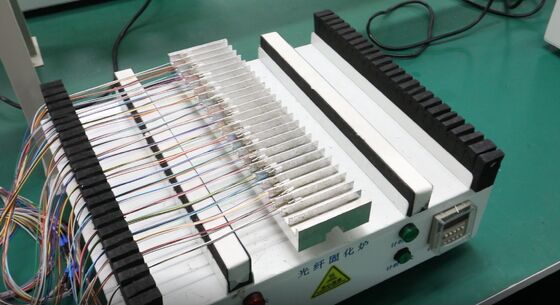

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 2
Applications
The CLX-D02 Optical Fiber Connector Heating and Curing Furnace is specifically designed for fiber optic connector manufacturers. This equipment efficiently heats and cures various fiber optic connectors with simultaneous capacity for 100 ceramic ferrules or 50 integrated connectors. The advanced PID temperature control system ensures stable temperature regulation with 1℃ accuracy, while adjustable heating times provide flexibility for different production requirements.
Company Profile

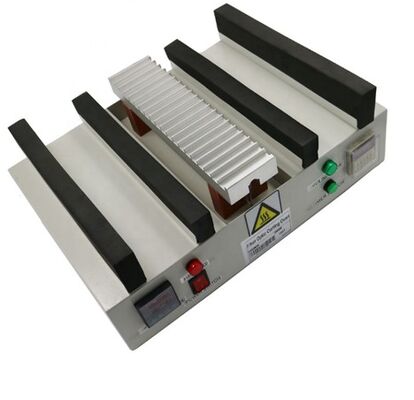

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 3
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as a comprehensive optical communications equipment company integrating research and development, production, after-sales service, and technical support. We are committed to providing high-quality products, excellent after-sales service, and complimentary technical support to our customers. Our team offers effective solutions for technical challenges encountered in fiber optic connector production processes.
Get a Free Quotation via Us >>>GO
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx with delivery in 4-6 days. Shipping time may vary based on order quantity.
How do we pay?
We accept advance booking and multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period with free repairs (excluding consumables). After warranty, accessories are available at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 4
