Casa /Prodotti/Macchina di fabbricazione del cavo di toppa della fibra/Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

1
MOQ
$115.23-126.15
prezzo
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Temperatura di riscaldamento: 40-200 ℃
Precisione della temperatura: +/-5℃
Tensione in ingresso: AC 110V o AC 220V
Consumo energetico: 200W
Periodo di stagionatura: 30~45 minuti
Temperatura di cura: 80~120℃
Capacità del connettore: 24 connettori
Peso netto: 2,5 kg
temperatura massima: 200 ℃
Connettori di polimerizzazione: 1~24 pezzi
Dimensioni: 170x140x190 mm
Energia: AC220V, 200W
Numero di modello: CLX-24D
Modelli di polimerizzazione: FC, SC, ST, LC
Blocco riscaldante: Blocco 24 porti
Evidenziare:

40-200 ℃ Heating Temperature Fiber Optic Curing Oven

,

80-120℃ Normal Curing Temperature Epoxy Curing Oven

,

30-45min Curing Period Patchcord Production Oven
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: Chuanglixun
Numero di modello: CLX-24D, CLX-24D
Termini di pagamento e spedizione
Descrizione di prodotto
CLX-24D Fiber Optic Connector Ferrule Epoxy Curing Oven for Patchcord Production Digital Type Field Fiber Optic Oven

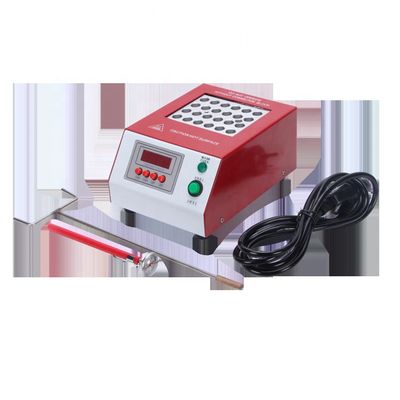

Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 0

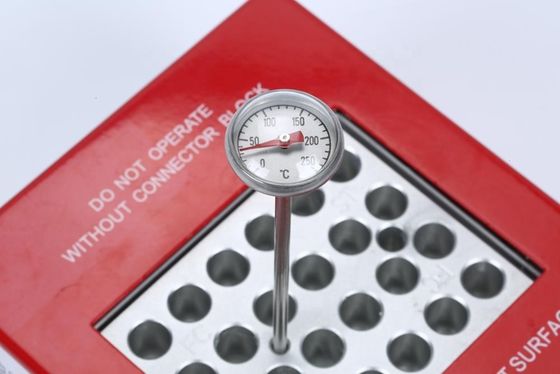

Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 1

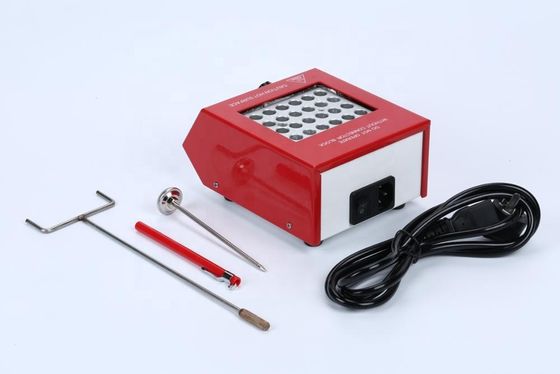

Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 2
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 3
Product Highlights
  1. 24 connectors heating simultaneously
  2. Compatible with various connector types
  3. Heating block design minimizes heat loss
  4. Simple operation with excellent curing results
  5. Compact size for easy portability and quick heating
Key Features
  1. Specifically designed for epoxy curing of fiber optic connectors
  2. Adaptable to different connectors via interchangeable heating blocks
  3. Capacity for 24 connectors simultaneously
  4. Precise temperature control with power indicator
  5. Includes 24-port block for FC, ST, SC, SMA, D4 connectors
  6. Automatic timing with audible alarm when cycle completes
Technical Specifications
Curing Model FC, SC, ST, LC
Model Number CLX-24D
Type Fiber Optic Production Machine
Power AC220V, 200W
Maximum Temperature 200℃
Operating Temperature 80-120℃
Curing Period 30-45 minutes
Capacity 1-24 connectors
Weight 2.5kg
Dimensions 170×140×190mm
Warranty 1 Year
Applications
  • Universal curing solution for fiber optic connector manufacturers
  • Heating and solidification of various connector types
  • Epoxy curing for FC, SC, LC, MU, ST connectors
  • Suitable for both facility and field operations
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd., established in 2010, specializes in optical communications equipment. We integrate R&D, production, and technical services, offering a comprehensive range of fiber optic production equipment including automatic cable cutting machines, epoxy injection systems, polishing machines, curing ovens, and testing equipment. Our commitment extends beyond quality products to include exceptional after-sales support and free technical assistance for fiber optic connector production challenges.
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2010, we serve domestic and international markets including North America, Oceania, and Europe with a team of 11-50 professionals.
How do we guarantee quality?
We implement pre-production sampling and final inspection protocols before shipment.
What products do we offer?
Our portfolio includes fiber optic polishing machines, curing ovens, crimping machines, and end face detectors.
Why choose us?
With eleven years of R&D experience, we provide not only quality products but also comprehensive technical support including documentation and video resources.
What services do we provide?
We accept various delivery terms (FOB, EXW, FAS) and payment methods (T/T, MoneyGram) in multiple currencies, with support in English and Chinese.
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 4
