High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors

1
MOQ
$199.12-218.45
prezzo
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Peso netto: 0,5 kg
Materiale: indurisca l'acciaio inossidabile
Misurare: 110*5mm
No. di fibra: 12
Tasso di passaggio 3D: ≥98%
Perdita di inserzione: ≤0.20db
Perdita di ritorno: ≥55dB (PC) ≥60dB (APC)
Tipo di connettore: SC,FC,LC,ST,MU,E2000(PC/APC)
Tipo di lucidatrice: Macchina per lucidatura a pressione centrale
Numero dei centri della fibra: 12
Struttura dell'IPC: Compressione indipendente di ciascun connettore
Tasso di passaggio dell'interferenza: ≥98% (100% tipico, secondo IEC)
Qualità della superficie: Elevata stabilità e buona qualità della superficie
Tipo di acciaio: acciaio temprato S2316
Rendimento di primo passaggio: 100%
Evidenziare:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Fixture

,

3D Pass Rate ≥98% ST UPC Polishing Fixture
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: chuanglixun
Numero di modello: ST/PC
Termini di pagamento e spedizione
Descrizione di prodotto
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture features an IPC structure with independent compression for each connector. With an interference pass rate ≥98% (typically 100% according to IEC standards), this fixture delivers high stability and excellent surface quality.

Constructed from high-quality heat-treated steel, the hardened S2316 steel ensures long service life. The fixture is compatible with SC, FC, ST, LC, MPO, E2000, FA connectors and can be customized to meet specific customer requirements.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders reduce polishing costs
  • Polished ferrule dimensions comply with IEC standards
  • 100% first-pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 24 months
Product Images

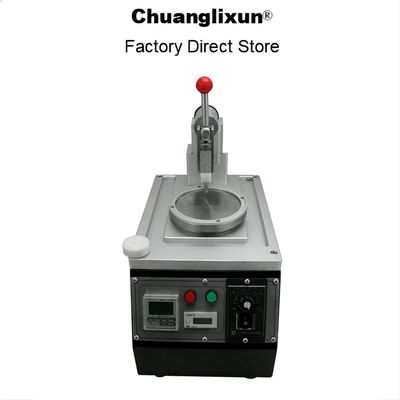

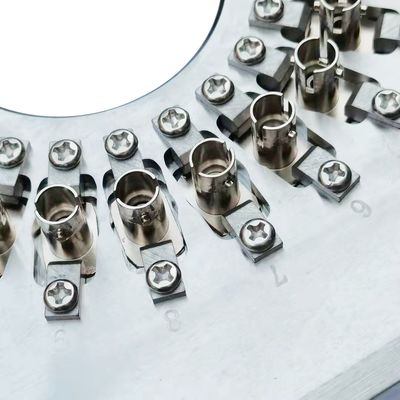

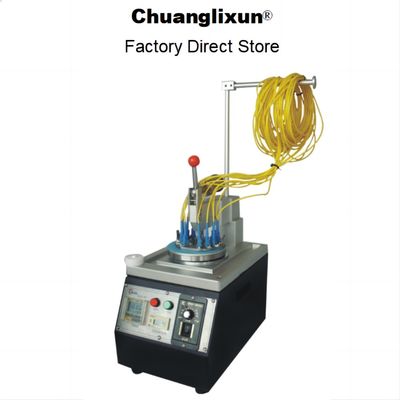

High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 0 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 1 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 2

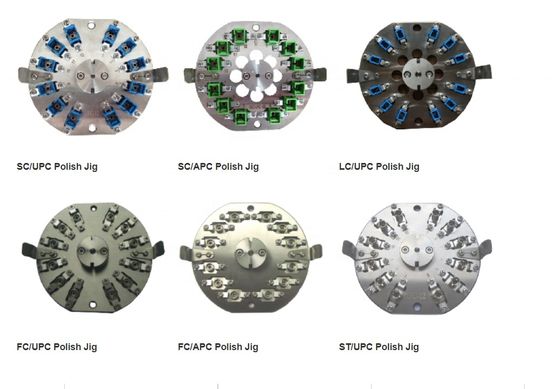

Available Models

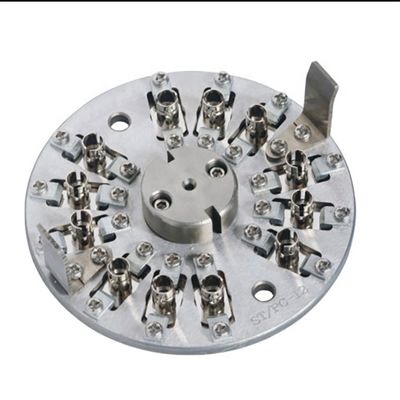

High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 3 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 4 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Delivery time may vary based on order quantity.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
