Casa /Prodotti/Dispositivo di lucidatura/Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

1
MOQ
$549.23-592.12
prezzo
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Peso netto: 1,3 kg
No. di fibra: 1
Materiale: Acciaio inossidabile temprato s136
Dimensioni: 174 mmx174 mmx26 mm
Perdita di inserzione: ≤2,3 dB
Lunghezza delle onde: 650nm
Temperatura operativa: -40°C ~ + 70°C ,-55°C ~ + 85°C
attenuazione: ＜180 dB/km
Peso lordo: 1,5 chilogrammi
Capacità di lucidatura: Max 24 connettori in un ciclo
Rendimento di primo passaggio: 98%～100%
Tasso di passaggio dell'interferenza: ≥ 98% (100% tipico)
Macchine adatte: Lucidatrice CLX-02E, lucidatrice Seikoh Giken SFP-550
Tipo di fibra: Fibra ottica in plastica
Modelli del connettore: HFBR-4501Z, HFBR-4511Z
Evidenziare:

Hardened Stainless Steel S136 Polishing Fixture

,

HFBR-4501Z/HFBR-4511Z Polishing Fixture

,

2 Year Warranty Polishing Fixture
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: chuanglixun
Certificazione: RoHS
Numero di modello: HFBR 4501Z/HFBR 4511Z, HFBR 4501Z/HFBR 4511Z
Termini di pagamento e spedizione
Descrizione di prodotto
Factory Custom Plastic Optical Fiber Patch Cord Polishing Fixture
Avago HFBR-4501Z/HFBR-4511Z Connector Polishing Jig

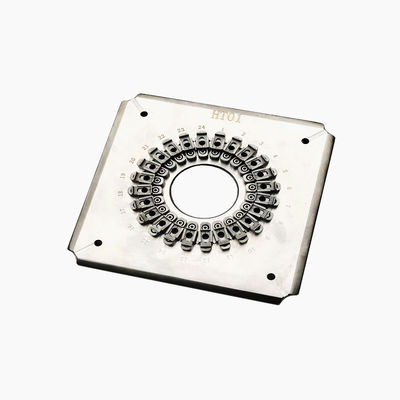

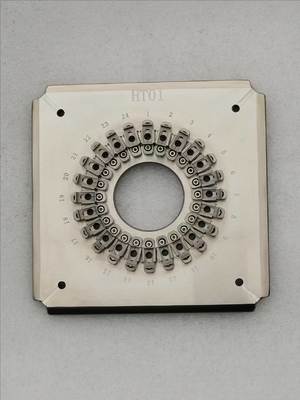

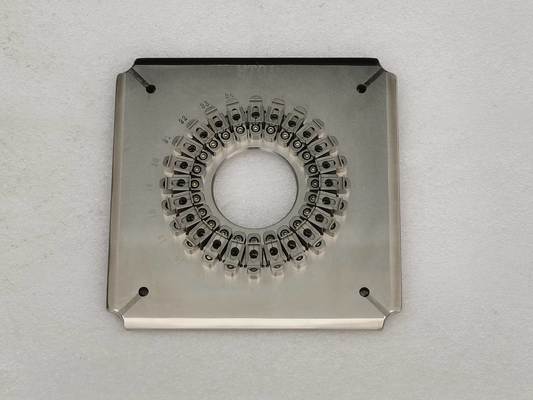

This high-stability fiber polishing fixture delivers excellent surface quality for plastic optical fiber connectors. Manufactured from hardened steel S2316 with heat treatment for extended service life, it's designed for HFBR series connectors and customizable to customer requirements.
Key Features

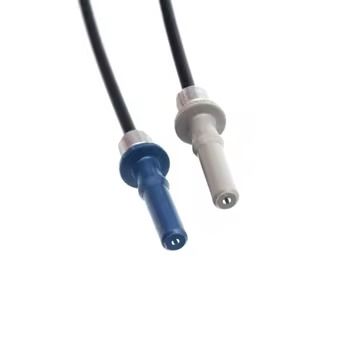

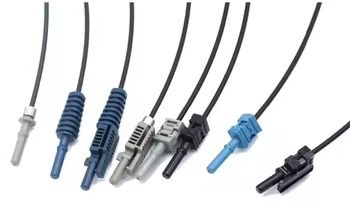

  1. Compatible with HFBR-4501Z/HFBR-4511Z plastic optical fiber connectors
  2. Quick-change jig system for simple, flexible operation
  3. High-efficiency design polishes up to 24 connectors per cycle with 98-100% first-pass yield
  4. IPC structure with independent compression for each connector
  5. Replaceable accessories extend fixture lifespan
  6. Heat-treated hardened steel S136 construction for durability
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 0 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 1 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 2
Technical Specifications
Specification Detail
Product Name Plastic optical fiber patch cord polishing fixture
Model HFBR-4501Z/HFBR-4511Z
Insertion Loss ≤2.3dB (connection loss excluded)
Brand Chuanglixun
Wavelength 650nm
Attenuation <180dB/km
Material Hardened stainless steel S136
Dimensions 174mm × 174mm × 26mm
Weight 1.3 kg (Net), 1.5 kg (Gross)
Compatible Machines CLX-02E polishing machine, Seikoh Giken SFP-550, and similar models
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 3
Get a free quotation →
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. (established 2010) specializes in optical communications equipment with integrated R&D, production, and technical support services.
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide samples?
Yes, samples are available.
What are your shipping methods?
Standard delivery via DHL or FedEx takes 4-6 days (may vary by quantity).
What payment methods do you accept?
We accept advance booking, T/T, and T/L payments.
What is your warranty policy?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
Do you offer customization?
Yes, we provide custom solutions based on customer requirements.
Request a free quotation →
