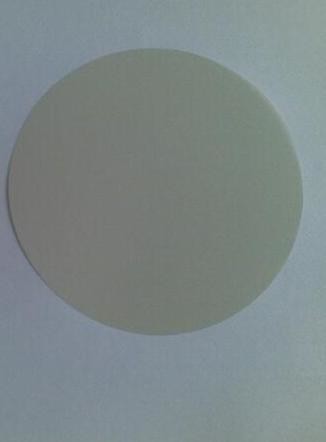

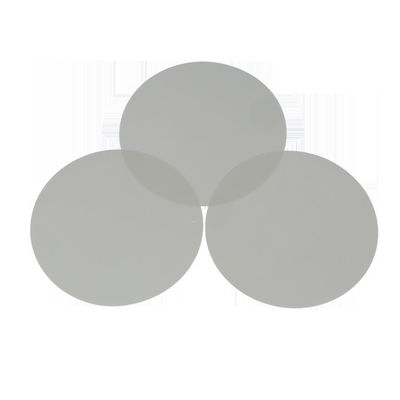

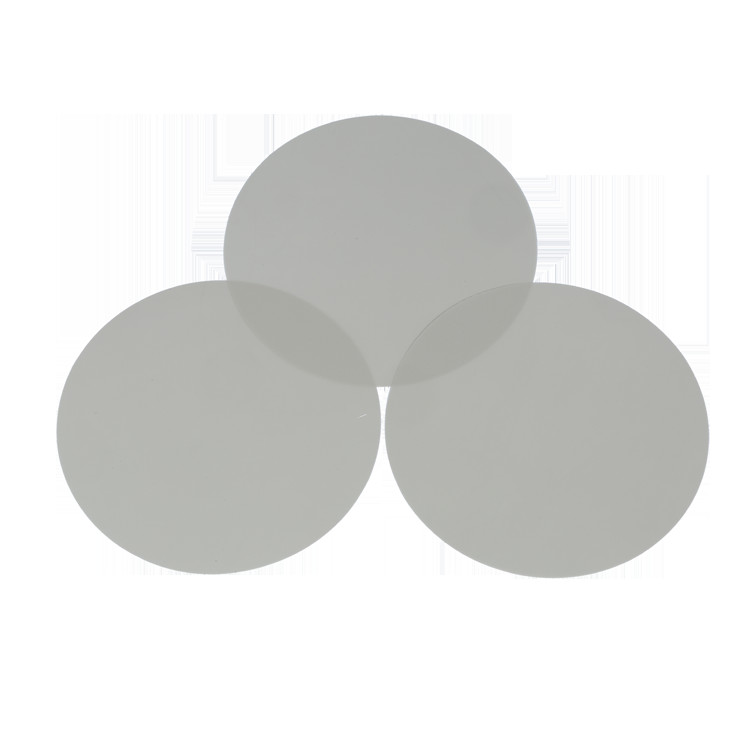

Diamond Polishing Film White a fibra ottica ad alta intensità D1-1um
Dettagli del prodotto
| Tipo: | Strumenti a fibra ottica di produzione | Materiale: | diamante |
|---|---|---|---|
| Colore: | Bianco | Dimensione: | 127mm |
| Grado dell'articolo: | 1 um | Applicazione: | Rimozione a resina epossidica |
| Evidenziare |
Diamond Polishing Film a fibra ottica,D1-1um Diamond Polishing Film,Film di lucidatura a fibra ottica ad alta intensità |
||
Descrizione del prodotto
D1-1um Fiber Optic Diamond Fine Polish Film Lapping Films
Descriptions
Lapping Film is coated with precisely graded minerals (such as diamond, aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish. Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing.
Feature
1. Evenly-sprayed particles on coated surface
2. Good intensity & flexility, suitable for polishing on different facets
3. Suitable for polishing with dry, water or oil medium
4. The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations
Specifications
| Model | D1-1um |
| Place of Origin | China |
| Standard Size | Φ127mm (5inch) |
| Material | Diamond |
| Article Grade | 1um |
| Color | white |
| Recommended Polishing Medium | Water/Oil |
| Apllication | Fiber Optic Connector, Ceramics Ferrule |
| Film Life | 10-15 times |
| Package | 100pcs / set |
| Storage Condition | Temp: 10~30℃ Humid: 30~70% |
Application
1.Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding
2.Grinding and polishing of optical lens, crystals, LED and LCDs.
3.Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.

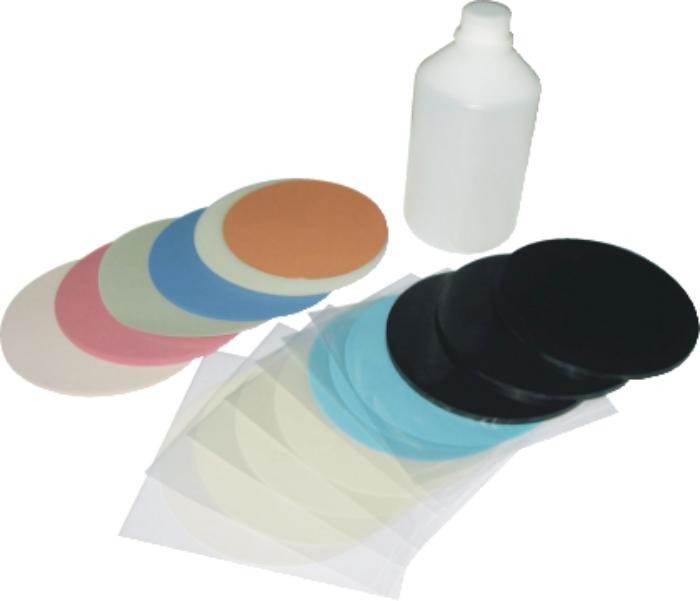

ORDERING OPTIONS
| Part Number | Material | Application | Packing |
| GA5D-30um | Silicon Carbide | Epoxy Removal | 20pcs/pack |
| DR5D-9um | Diamond | Coarse Polishing | 20pcs/pack |
| DG5D-5um | Diamond | Medium Polishing | 20pcs/pack |
| DH5D-3um | Diamond | Medium Polishing | 20pcs/pack |
| DI5D-1.5um | Diamond | Fine Polishing | 20pcs/pack |
| DJ5D-1um | Diamond | Final Polishing | 20pcs/pack |
| XF5D-0.02um | Silicone Dioxide | UPC Final Polishing | 100pcs/pack |
| D30-30um | Diamond | Adhesive Removal | 50pcs/pack |
| D9-9um | Diamond | Coarse Polishing | 50pcs/pack |
| D5-5um | Diamond | Medium Polishing | 50pcs/pack |
| D3-3um | Diamond | Medium Polishing | 50pcs/pack |
| D1-1um | Diamond | Fine Polishing | 50pcs/pack |
| ADS-127 | Silicone Dioxide | Final Polishing | 100pcs/pack |
| SC-16um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-3um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-1um | Silicon Carbide | Fine Polishing | 50pcs/pack |
| AA1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| CE1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| MFP610 | Flocked Film Without Abrasive | MPO Final Polishing | 50pcs/pack |
| Remark: (1) All polishing films could be manufactured according to custom design. | |||
| (2) If you could not find the polishing films you want, please feel free to contact us via email or phone. | |||
